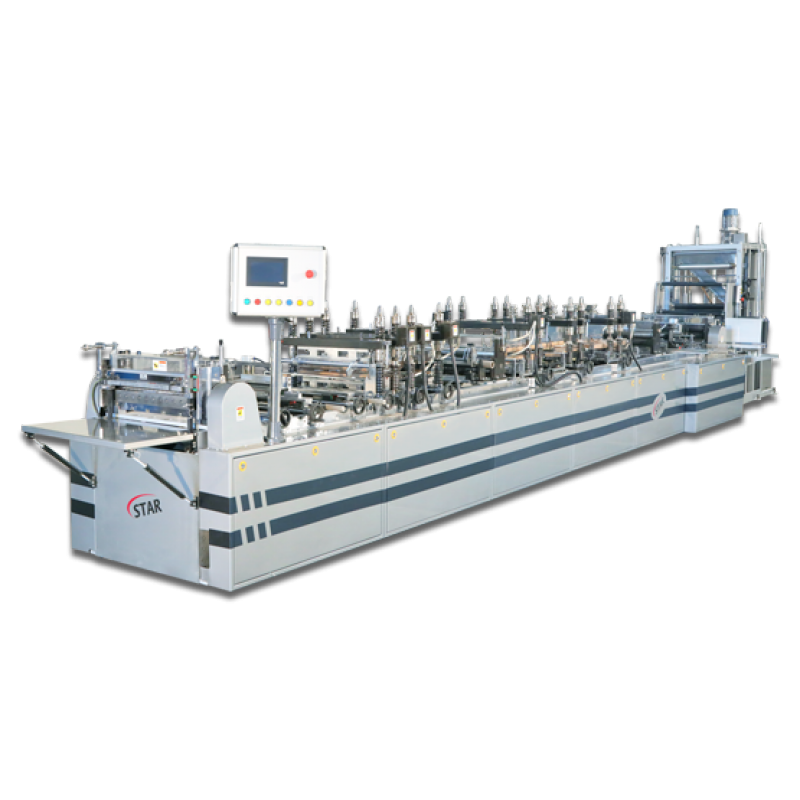

Stand Up & Zipper Pouch Making Machine

Stand Up & Zipper Pouch Making Machine

Our Side Sealing And Cutting Machine Is A Major Example Of The Modern Cutting Edge Machinery. The Machine Operates Easily And Has A Maximum Speed Of 250 Cycles Per Minute. With High Dimensional Accuracy, Our Side Sealing And Cutting Machines Have Been Up To The Mark Of The Client Demands. The Machine Is Currently High In Industrial Demands, And Has Efficiently Produced The Desired Results.

Attachments

  • Perforation
  • Hole Punch
  • V Knotch
  • D Punch
  • Two Web Registration Control
  • Three Web Registration Control
  • Four Web Registration Control
  • Edge Guide

Machine Model

MAX.POUCH WIDTH 500 MM
MIN.POUCH WIDTH 150 MM
MAX DRAW LENGTH 500 MM
MIN DRAW LENGTH 50 MM
THREE SIDE SEAL ONE TO THREE LINE OPERATION YES
THREE SIDE SEAL ZIPPER TWO LINE OPERATION YES
THREE SIDE SEAL STAND UP TWO LINE OPERATION YES
SELF IN GUSSET YES
ADD ON GUSSET YES
MAX.STROKES / MINUTE 150 Strokes
