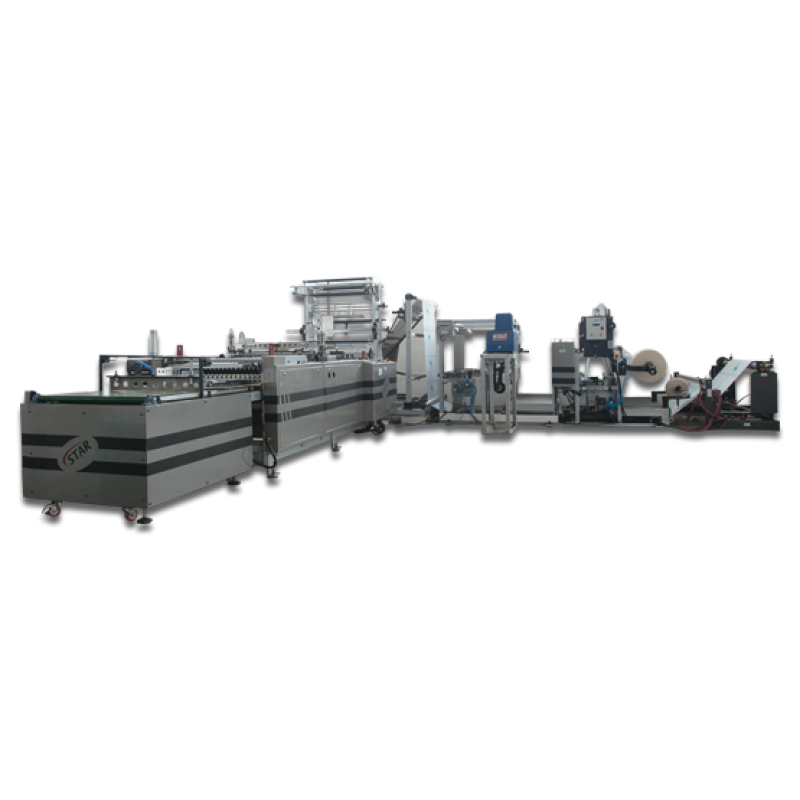

Courier Bag Making Machine

Courier Bag Making Machine

Our Side Sealing And Cutting Machine Is A Major Example Of The Modern Cutting Edge Machinery. The Machine Operates Easily And Has A Maximum Speed Of 250 Cycles Per Minute. With High Dimensional Accuracy, Our Side Sealing And Cutting Machines Have Been Up To The Mark Of The Client Demands. The Machine Is Currently High In Industrial Demands, And Has Efficiently Produced The Desired Results.

Attachments

  • Twin Seal Assly
  • Bar Code and Related Assly

Included

  • Basic Side Seal Machine
  • Un winder with Edge Guide System capable up to 500mm Dia Roll
  • Motorize Film Folding Device
  • Auto Tension Controller
  • Two Separate Un Winder for Pocket (Maximum Width up to 200mm)
  • Two Running Sealer for Pocket Seal
  • Hot Glue Unit
  • On Line Tape Applicator
  • Bottom Gusset
  • Pneumatically Controlled Pivoted Dancer
  • Lip Formation
  • Servo Driven Primary Index
  • Standard LD Sealer
  • Auto Conveyor Stacker

Salient features

  • The Most Up – to date technology enables easy operation and guarantees minimal maintenance cost
  • Servo Motor for indexing accuracy
  • Touch Screen Pane
  • Self-Aligning Sealing blade
  • Main, Conveyor and Un winder AC Motors
  • Static Eliminator with Electrodes
  • Photocell
  • Stacking Tray

Specifications

  • Type of Film Can be used : HM –HDPE / LDPE / PP / BOPP /CPP
  • Maximum Mechanical Speed: 325 Cycles / min.
  • Minimum Draw Length : 100mm
  • Maximum Draw Length : 800mm
  • Minimum Width : 200 mm
  • Maximum Width : 750 mm

Thickness (In Microns)

Material Max. Min.
PP / CPP 75 25
BOPP 45 21
HM – HDPE 75 10
LDPE 100 25
