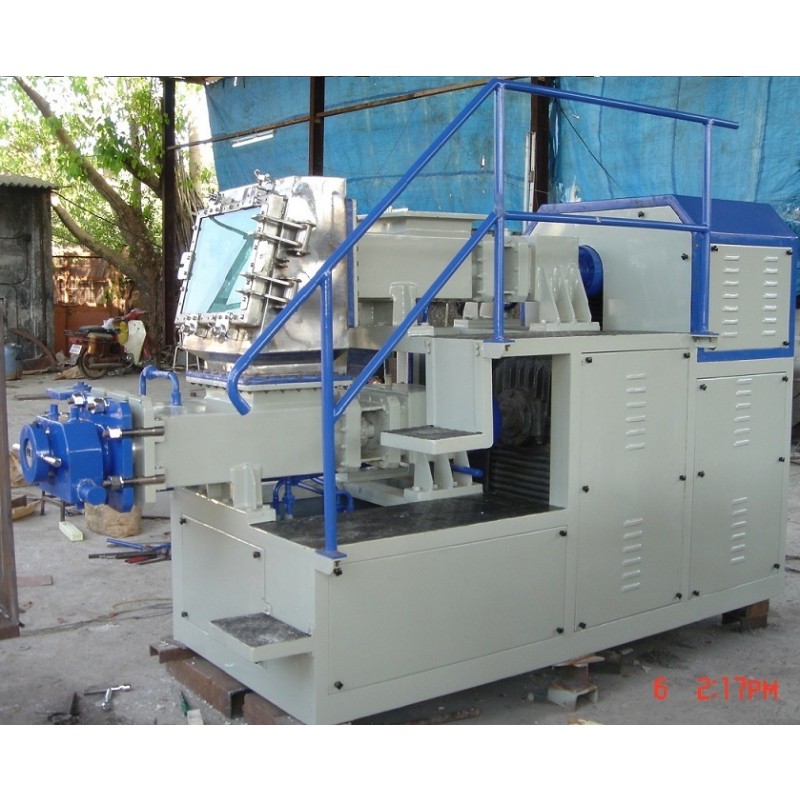

DUPLEX SINGLE WORM VACUUM PLODDER - 500 KG/HR.

DUPLEX SINGLE WORM VACUUM PLODDER - 500 KG/HR.

PART / MODEL NO. SVPTW0500KG0

The Duplex SINGLE Worm Vacuum Plodder Is Suitable For Extrusion Of Toilet Soap Bar.
The Components Of Plodder Are:-
Technical Specifications.
Sr. No. Perticulars Tech. Specs
1 CAPACITY / VOLUME 500 KGS/HR
2 CONTACT PART AISI S.S. 304
3 BARREL DIAMETER AND SCREW DIAMETER 250 MM
4 OTHER PART IS 2062 CARBON STEEL / IS 808
5 FLANGES IS 2062 CARBON STEEL
6 BARREL SHELL S.S. 304
7 OUTER COOLING CARBON STEEL
8 FASTNERS IS 1364
9 CONE BODY S.S. 304
10 OUTER HEATING JACKET  M.S. FABRICATED
11 END FLAGE M.S.
12 HEATER / THERMOSTAT STANDARD MAKE
13 CONE TROLLEY M.S. FABRICATED
14 BEARING HOUSING  M.S. / CAST - IRON
15 BEARING E.N. 8
16 DRIVE SHAFT E.N. 8
17 NOODLE PLATE S.S. 304
18 WORM SCREW S.S. 304
19 WORM SUPPORT S.S. 304
20 REDICOMG GEARBOX U 600 RATIO 30:1  GREAVES MAKE
U 800 RATIO 30:1  GREAVES MAKE
- WORK & WORM WHEEL TYPE (HORIZONTAL)
21 MOTOR 15 HP FOR PRIMARY PLODDER
20 HO FOR VACUUM PLODDER BOTTOM
22 DIMENSIONS FURNISH AFTER YOUR ALYOUT



UTILITIES

1) Vacuum                                          -           REQUIRED 450 TO 500 HGS (SCOPE OF CUSTOMER)
2) Steam                                             -           Not Required
3) Cooling Water Flow Rate Required            2000 ltrs /HR
4) Cooling Jacket Volume                  -         75  Ltrs. For Each Barrel
5) Electricity                                      -           15 + 20      = 35 HP.
6) HEATING OIL REQUIRED IN CONE         - 40 LTRS
