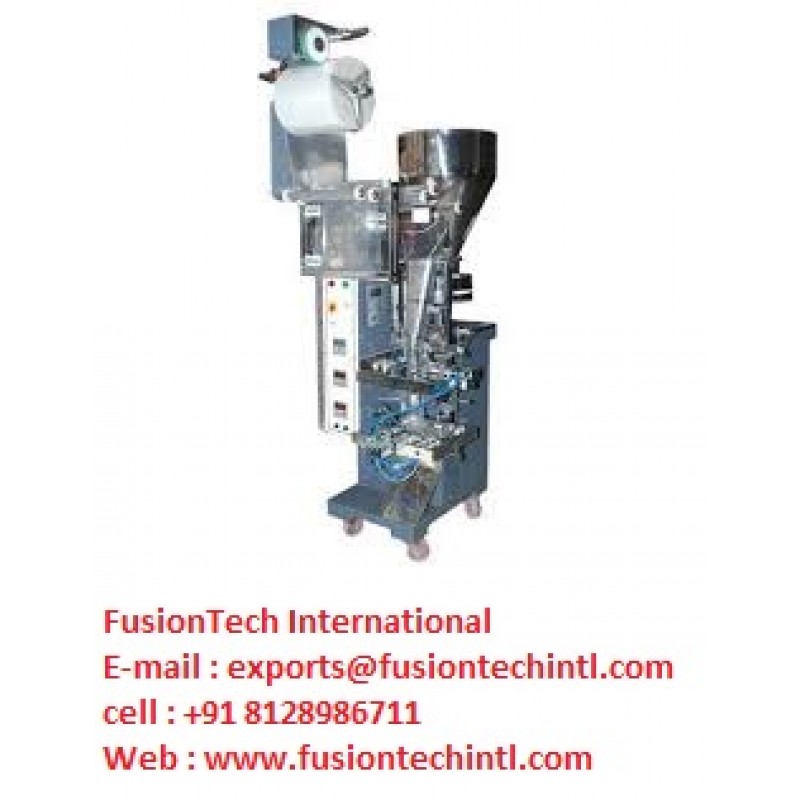

Automatic Pouch Packing Machine

>        Advanced PLC Control With Touch Screen/HMI Support

>        Stainless Steel Cover Of Machine.

Product Details:

Voltage 220 V
Capacity 50 To 100 Pouch Per Min
Phase Single
Machine Weight 400 - 500 Kg
Motor Power 1 HP
Type Of Sealing Centre Sealing
Machine Body Material SS
Frequency 50 Hz
Automation Grade Automatic




SPECIFICATION:-

MACHINE

 automatic Pouch Packing Machine

FILLING SIZES

 100gm200gm500gm

OUT PUT

20 To 25 Pouch Per Min

TYPE OF SEALING

Central Sealing

POWER CONNECTION

single Phase

POWER REQUIREMENT

1 Hp / Heater - 2 X 125W , 2 X 450W

FILLING MATERIAL CONTACT PARTS

stainless Steel

MACHINE MAIN MOTOR

1/2 Hp

MACHINE DIMENSION

750 X 550 X 1800 Mm ( L X W X H )

MACHINE WT

300 TO 350 Kg

OPTIONAL

Batch Coding, Nitrogen Flushing

SPECIAL FEATURES:

·         Fully Plc Base Machine

·         With Pneumatic Cutting

·         Simplified Operation And Maintenance, Length Can Automatic Adjust.

·         Fill Volume Can Be Changed With Changeable Cups.

·         Sensitive Photo Electric Eye Registration System Accurately Positions The Printed Packing Material.

·         All  covering Contact Parts Made Of Stainless Steel / Acrylic

·         Equipped With Automatic Pouch Counter To Calculate And Record The Out Production.

·         With Automatic 6/8/10/12 Pouch Raw Cutting System

>        Bucket And Screw Feed Elevator

>        Gas Flushing Lubricant Pump.

>        Automatic Lubrication Pump.
