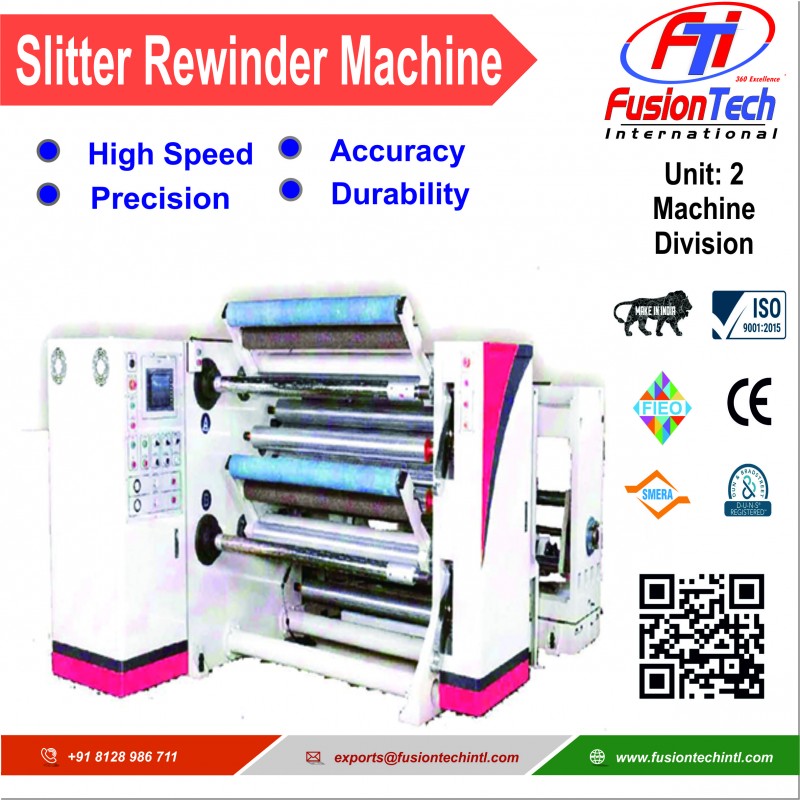

Slitter Rewinder Machine

A Slitter Rewinder Machine Is Used By Paper Products Manufacturing Industries, To Make Smaller Rolls From Big Sized Wider Rolls. This Process Is Made Easier And Simpler By The Semi-automatic Slitter Rewinder Machines Coming To You From Fusiontech, Ahmedabad.

The Popularity Of Fusiontech Does Not End There. You Can Get Specialty Slitter Rewinder Machines To Be Used For Any Material Like Film, Tape, BOPP Tape Slitter Etc. By Many Industries Like Paper Products, Textiles, Non-woven Materials And Others.

Therefore, Whatever Industry You Need These Machines For, You Can Approach Fusiontech For Heavy Duty Unwinder Or Rewinder; Pneumatic Auto Feeding Facility; Auto Cut Program With A Timer Etc.

The Sophisticated Technology Aspects Used In The Manufacture Of These Machines Give You An Edge From Peers, In Terms Of Speed, Accuracy, Easiness To Handle, Perfection In Quality, As Also Using The Machine From The Smallest To The Biggest End-product Sizes, As Required.

This Way, Cutting, Slitting, Unwinding, Rewinding And Also Wastage Clearance Etc. Everything Takes Place Perfectly As If Clock-work In Time. It Goes Without Saying, When The Manufacturing Efficiency Increases, Simultaneously The Cost Gets Reduced, And The End-product Price Can Also Become Affordable, For Biggest Market Capture And Sales.

No Wonder Satisfied Customers Speak Volumes About Fusiontech, After Buying These Specialty Slitter Rewinder Machines.

Fusiontech Special Future Of Slitting Machine

  • Slitter Main Body Mild Steel (No Casting And No Crack Chancing)
  • All Machine Parts And Mild Steel Is Cnc Work 00 Engineering
  • Specialize Unwinder Heavy Duty Pata Structure
  • Unwinder Hydraulic Loading 1.5 Ton With 1500 Diameter Roll Load
  • Unwinder Electric Web Guide Guide Way Liner (No Maintenance)
  • Unwinder Safety Chuck With Airshaft With Electric Brack
  • Rewinder 2 Side Airshaft With Core Setting Dimension
  • Rewinder Unload Material Auto Push-pull By Pneumatic Cylinder
  • Rewinder Timing Pully With Timing Belt Silent High-speed Balancing
  • Special Fusiontech Brand Our Make Knife Cutter Holder (Shaft Damage-less)
  • Material Feeding Rubber Roll GTR Grade
  • Pneumatic Auto Feeding Feeder Rubber Rolls
  • Electric Panel PLC Base Auto Cut Program With Sound
  • Auto Rewinding Cut Off/on Timer Program
  • Fusiontech High Speed Silent And Best Performance Machine

Main Technical Parameter

Making Model Type Drum Base S1050
Max. Parent Web Width 1080mm
Max. Unwinder Web Diameter 1500mm
Max. Unwinder Load Capacity 1.5 Tons
Max. Rewinding Diameter 700mm
Rewinding Unit Semi Auto
Minimum Slitting Material Width 28mm (Customization Available)
Slitting Cutting Unit Razed Blade And Circular Knife Cutter
Material Thickness Range Paper: 50gsm To 600gsm
Film: 0.015 To 1mm
Max. Machine Speed 90 To 110m/Min.
Unwinding/Rewinding Shaft 3” Pneumatic Air Shaft
Slitting Precision ±0.15mm
Application Material Label, Regular Paper, Kraft Paper, Non-woven Cloth, Film (PP, PVC, OPP.PE, PET, BOPP), Bond Paper, Etc.

Main

  • Equipped With Programmed Control System And Meter Counter.
  • Equipped With Frequency Inveter(5HP) For Motor Control Working More Stable.
  • All Transmission Rollers Have Been Dynamic/static Balance Treated
  • Slitting With Razor Blades & Circular Blades(Kniff Round Blade)
  • Equipped With Guide Roller, Size(dia.*width) 50mm*1635mm

Unwinding Section

  • 3’’ Pneumatic Air Expanding Shaft.
  • Equipped With Edge Position Control(EPC) To Provide Accurate Slitting Position
  • Equipped With Automatic Loading System For Jumbo Roll Loading, Labor Saving And Easy Operation.
  • Equipped With 20Kg Automatic Braking Device X 1 With Loadcell Sensor .
  • New Tech Flange Safety Chuck With Air Shaft Easy Fast Work
  • Hydraulic Reel Lift 1.5 Ton Capacity

Trimmed Waste

Equipped With Air Blower And Expulsion Tube.
