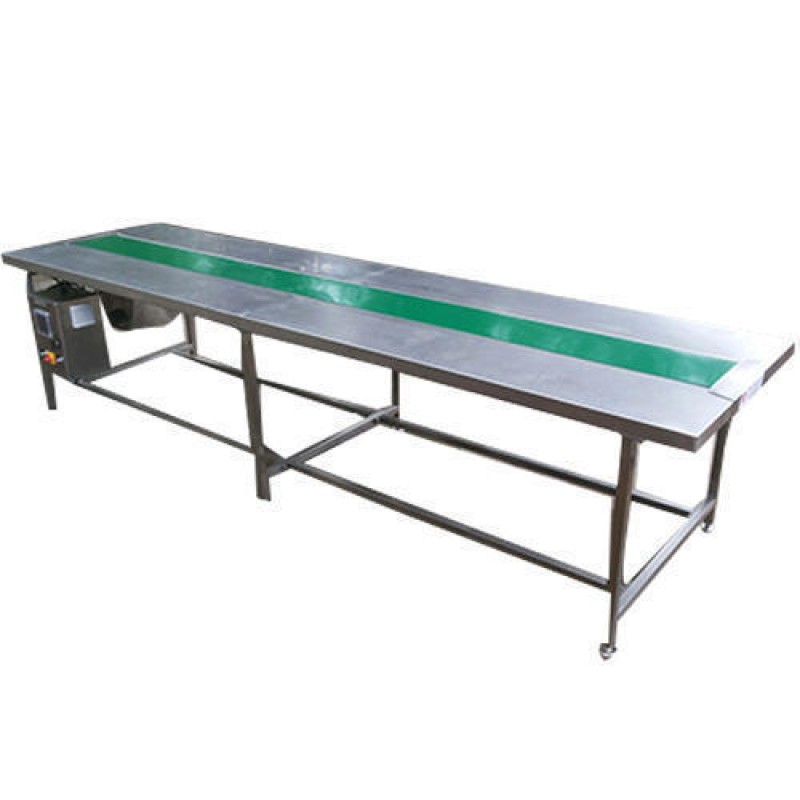

Packing Conveyor Belt

TECHNICAL SPECIFICATION

Model JSPCB
Direction Of Movement** Left To Right
Speed** 7.5 Mtr./Min. Up To 12 Feet Long
12 Mtr./Min. From 13 Feet To 24 Feet Long
No. Of Characteristics** 0.25 HP / 220 V / 50 Hz Up To 12 Feet Long
0.5 HP / 220 V / 50 Hz From 13 Feet To 24 Feet Long
Height Of Conveyor** 860 Mm To 910 Mm
Belt Width** 9" Or 12" As Per Requirement.
Belt Details** PVC, Endless 2 Ply Sandwich, 2 Mm Thickness.

SALIENT FEATURES :

  • Structure Is Made Of S.S. 304, 30 Mm Sq. Pipe, 16 SWG With Matt Finish.
  • A/c Frequency Variable Drive.
  • Belt-alignment System For Long Life & Straight Running Of Belt.
  • S.S. Elegantly Matt Finishing.
  • Adjustable Height Of Conveyor Belt To Align With Other Machines Of The Line.
  • Self-alignment Bearing For Easy Maintenance.
  • Rigid Vibration Free Construction For Trouble Free Performance.
